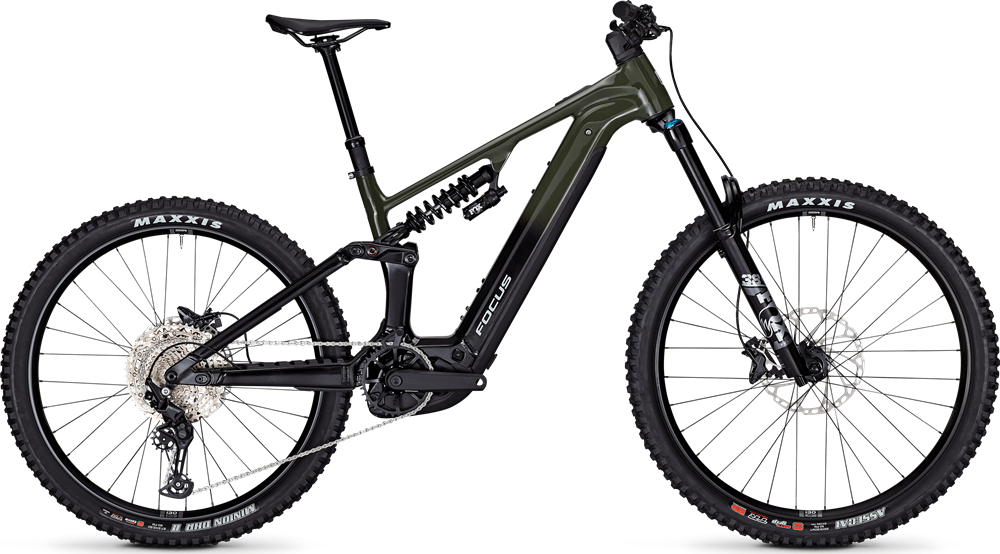

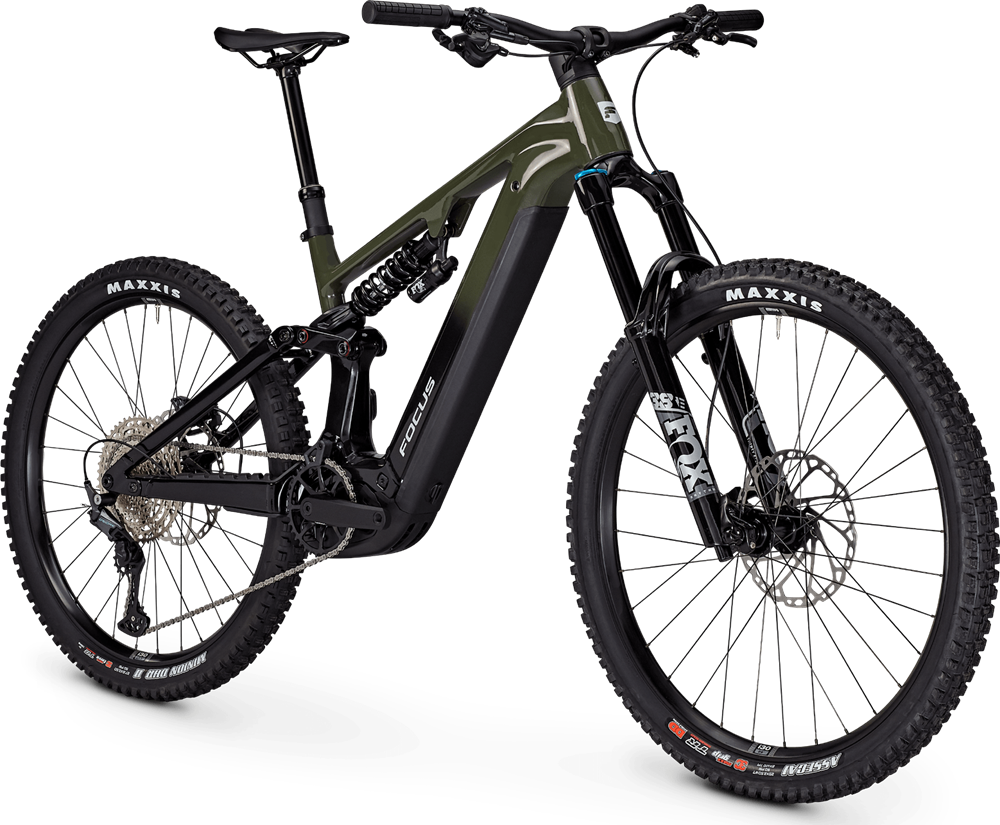

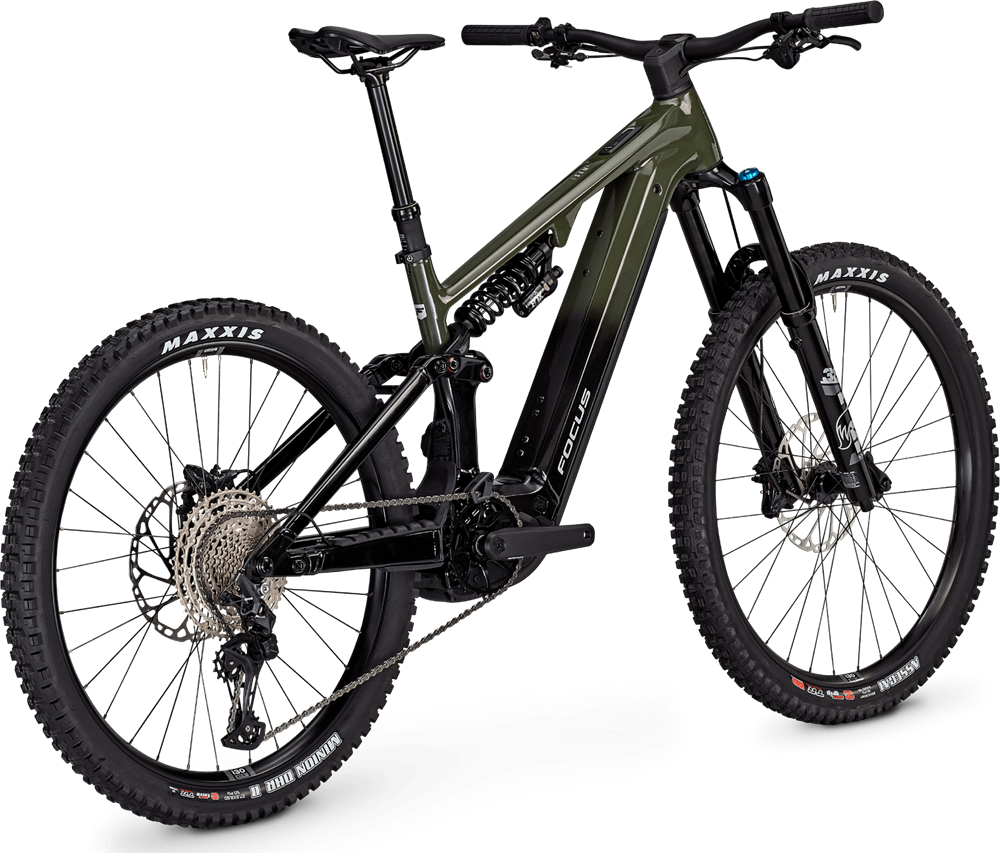

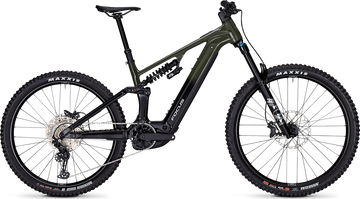

Focus F26 Sam2 6.8
Aluminium frame with Bosch Performance Line CX e-drive & 600 battery
FOX 38 Rhythm fork & FOX DHX Performance coil shock
SHIMANO DEORE 12-speed & mullet wheels
Frame - 7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
Special Features - Geometry adjustment of head angle and chainstay length, Tool bag (excluding size S), Hidden AirTag or Chipolo holder
Fork - Fox 38 Rhythm, Grip 3-Position, 170 mm
Shock - Fox DHX Performance, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm
Motor - Bosch Performance Line CX, 85 NM, 100 NM update via Flow App available summer
Battery - Bosch PowerTube Li-Ion (600 Wh)
Display & Remote - Bosch Mini Remote + System Controller
Shifter - Shimano Deore
Rear derailleur - Shimano Deore, 12-speed
Cassette - Shimano CS-M6100, 10-51T
Chain - Shimano CN-M6100
Crankset - Samox, 165 mm
Chainring - Samox, 36 T
Handlebar - Alloy, width: 800 mm, rise: 30 mm
Grips - VP Lock-On Grips
Stem - FOCUS C.I.S. 2.0, 40 mm
Headset - ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
Saddle - Focus
Seatpost - Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 200 mm, 34,9 mm
Brakes front | rear - Shimano Deore BR-M6120, 4-piston | Shimano Deore BR-M6120, 4-piston
Disc brake rotors - Shimano SM-RT66, front: 220 mm / rear: 220 mm
Rim front - WTB STi30 TGH, alloy, 29"
Rim rear - WTB STi30 TGH, alloy, 27,5"
Front hub - Formula DC-611
Rear hub - Formula DC-648
Tyres front | rear - Maxxis Assegai, DoubleDown, 3C MaxxGrip 29 x 2,5" | Maxxis Minion DHR II, Downhill, 3C MaxxGrip 27,5 x 2,5"
Weight - 26.5 kg (600 Wh)
Permissible system weight - 150 kg
