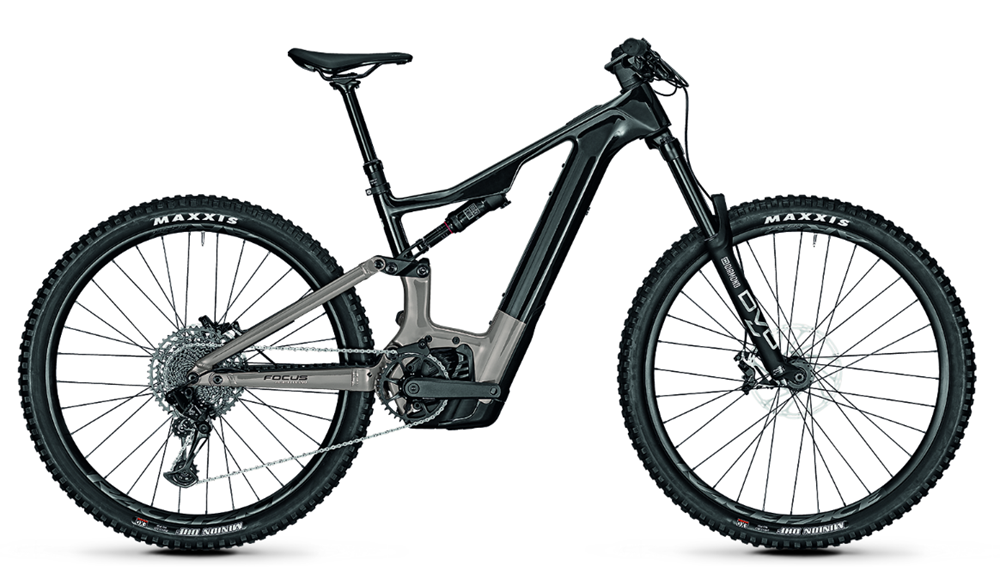

Focus F24 Jam2 8.7

Bosch smart system with performance CX E-Drive, system controller with mini remote and 625 Wh battery.

160mm travel dvo diamond E3 suspension fork and 150mm F.O.L.D. kinematics mit rockshox deluxe select rear shock.

Fully integrated C.I.S. cable routing with trail-ready Sram NX Eagle 1 x 12 shifting.

Frame

• Carbon front triangle
• Aluminium rear triangle
• 150 mm F.O.L.D. GEN2 kinematics
• 148x12 mm thru axle
• Internal cable routing, post mount 203 mm

Fork

• DVO Diamond E3
• 110x15 mm
• 44 mm rake

Travel of Suspension Fork

• 160 mm

Shock

• Rock Shox Deluxe Select
• 210/55 mm
• Hardware: 25.0 x 25.0 mm

Motor

• Bosch Performance Line CX Smart System
• 36 V / 250 W / 85 Nm

Battery Watt-Hours

• 625 Wh

Battery Ampere Hours

• 17,4 Ah

Display

• Bosch System Controller + Mini Remote

Shifter

• SRAM SX Eagle
• 12-speed

Rear Derailleur

• Sram NX Eagle
• 12-speed

Sprocket

• Sram PG-1230 NX Eagle
• 12-speed

Chain

• Sram SX Eagle, 12-speed

Crankset

• Samox EC40 ISIS

Transmission of Drive

• Front: 36
• Rear: 11-50

Bottom Bracket

• Integrated in Drive Unit

Handlebar

• Aluminium
• 800 mm
• Rise: 30 mm
• Backsweep: 9°

Stem

• Focus C.I.S. integrated
• 50 mm
• 0°
• 35 mm
• aluminium

Headset

• AcrosS ZS56/ZS66 (ICR)
• Focus C.I.S. Integrated
• 1.5/1.8" angle headset

Saddle

• Selle Royal Groove

Seatpost

• Post Moderne dropper post PM-214
• 34.9 mm

Brake Caliper

• Sram Guide T

Brake Lever

• Sram Guide T

Brake

• Disc

Rims

• RaceFace AR30 Offset

Rear Hub

• Novatec D462
• 12x148 mm

Front Hub

• Novatec D041
• 15x110 mm thru axle

Tyres

• Maxxis Minion DHF, 2.6 Dual EXO TR, 66-622

Gears

• 12

Bike weight including battery in kg

• 23,7kg
