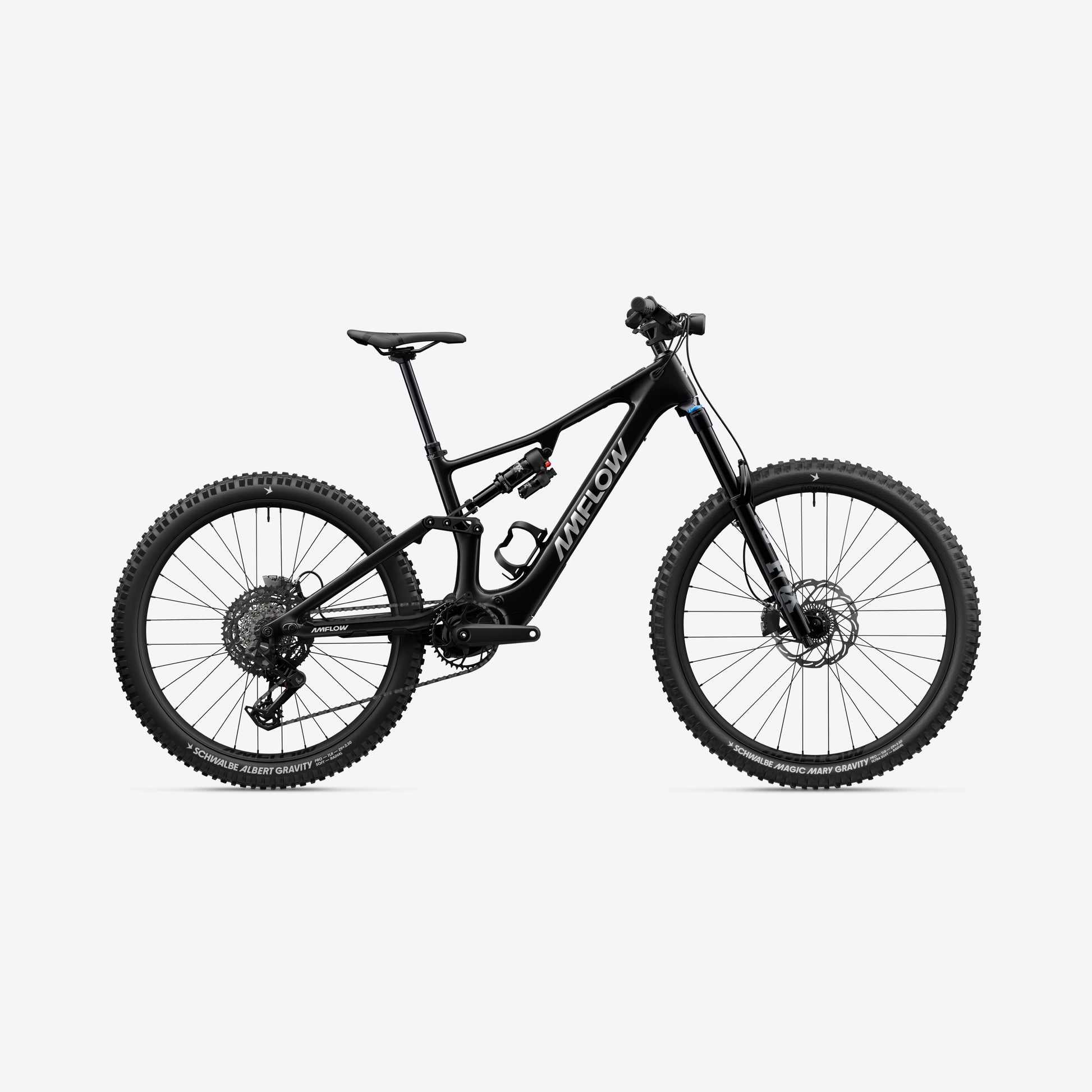

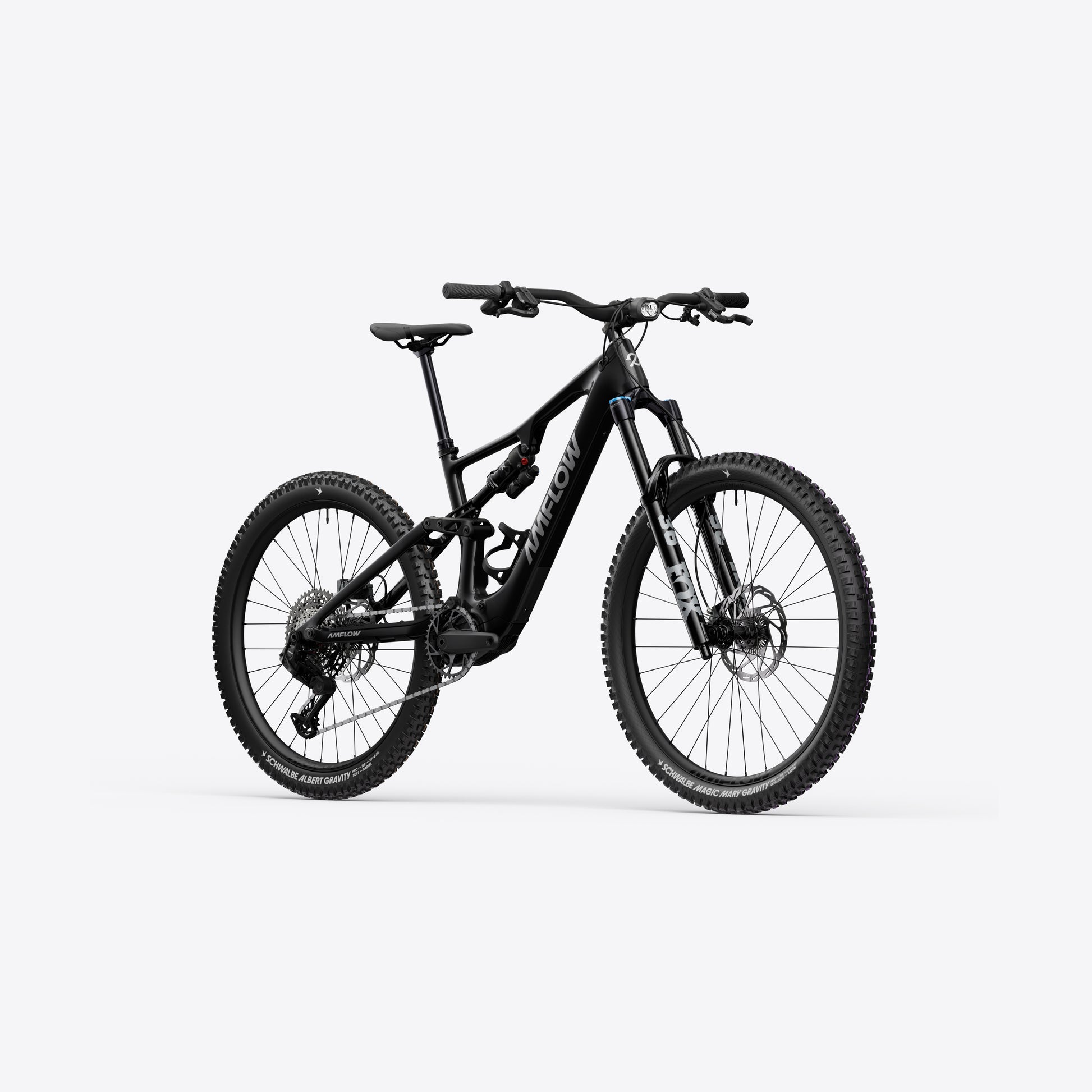

Amflow PX Carbon

Frame

• Amflow PX Carbon Frame
• Phantom Black
• 40 adjustable geometry configurations *
• Compatible with 27.5″ and 29″ rear wheels

E-Bike System

• Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
• Avinox Screen: 2-inch OLED Control Display
• Avinox Integrated Battery: 700Wh
• Avinox Wireless Controllers: Right and left sides
• Avinox Fast Charger: 12A/508W

Rear shock

• FOX Float X Performance
• 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock

Fork

• FOX 36 Performance
• 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

Drivetrain

• Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
• Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
• Shift Levers: SRAM AXS Pod Controller
• Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
• Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T
• Chain: SRAM Eagle 70 Transmission Flattop Chain
• Chain: SRAM X0 Eagle Transmission Chain
• Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
• Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura Gustav Pro Hydraulic Disc Brake, 4-piston callipers
• Magura Sensor Rotor (203mm, 2.5mm)

Wheels

• Amflow XMA-30 Mullet Version
• Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
• Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
• Spokes: SAPIM E-Light
• Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
• Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Tyres

• Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
• Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready

Handlebar

• Amflow Enduro Alloy Handlebar
• 40mm Rise, 800mm Width, 35mm Diameter
• 5-degree upsweep, 9-degree backsweep

Grips

• Amflow Enduro Grip 2 Lock-on Grips

Stem

• Amflow Mountain Bike Split Stem
• Length: 35mm
• Clamping Diameter: 35mm

Saddle

• Amflow Mountain Saddle

Dropper Post

• Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
• M/L Frame: 190mm
• XL Frame: 210mm
• XXL Frame: 230mm

Accessories

• Avinox Front Light
• Amflow Bottle Cage
• Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
• 5/10mm Dropper Post Travel Reducing Spacer
• Rear Light
• Torque Wrench
• Clear Frame Protection Film
• Shock Pump
• Quick Start Guide
